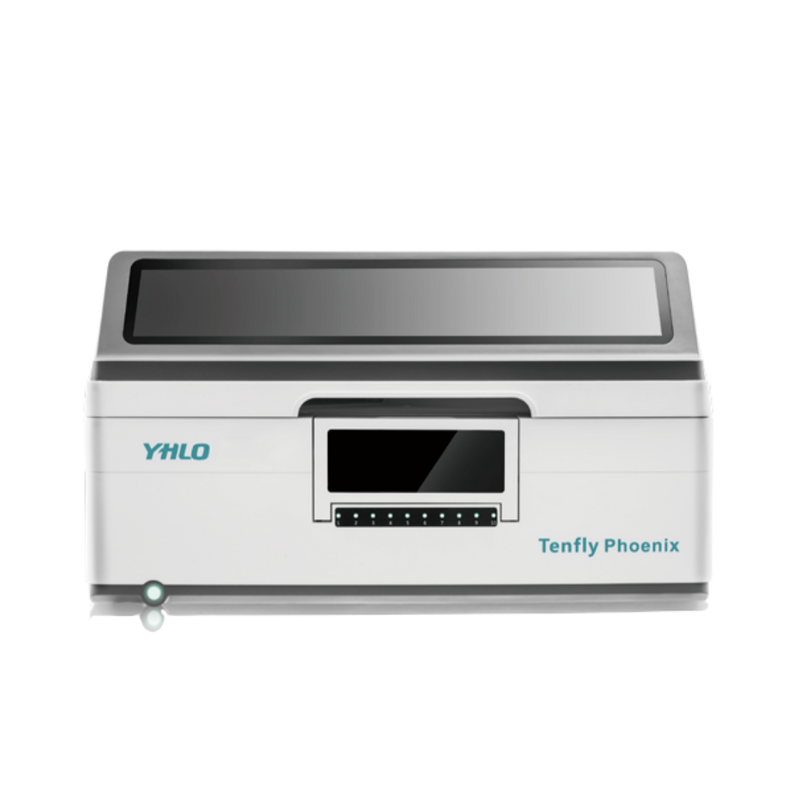

Tenfly is a fully automated line immunoassay (LIA) system developed by YHLO to meet the growing demand for reliable, high-throughput confirmatory testing in autoimmune disease diagnostics. Designed with precision, flexibility, and workflow efficiency in mind, Tenfly streamlines the traditionally manual LIA process into a fully integrated solution — from sample loading to result interpretation.
Built on membrane-based Western blotting technology, Tenfly supports multiple autoimmune panels in a single batch, including ANA, Myositis, Vasculitis, and more. Its robust automation, fast turnaround time, and high-resolution scanning ensure accurate, reproducible results — even for complex, multi-parameter testing.
Key Benefits:
- Fully automated from sample loading to interpretation
- Up to 60 strips per batch, with support for over 1,000 parameters in under 3 hours
- 95%+ agreement with visual interpretation for qualitative results
- Compatible with standard collection tubes and minimal residual volume
- Ideal for labs handling autoimmune confirmatory testing with high efficiency
Features:
- Type: Fully automated Line Immunoassay Analyzer (LIA)
- Throughput: Up to 60 strips per batch; 1020 tests in under 3 hours (17 parameters x 60 strips)
- Fastest time to first result: 18 minutes drying + 2 minutes scan
- Detection principle: Western blotting with automated strip interpretation
- Chemiluminescence label: N/A - optical interpretation via high-res camera (1600x1200)
- Sample position: 50 positions (10 racks x 5 tubes), supports original tubes
- Sample tube: Compatible with standard collection tubes
- Sample volume: 10-1000 µL
- Reaction vessel loader capacity: 60 strip trays per batch
- Reagent position: Modular sample & reagent needle components
- Reagent carousel temperature: Auto temp control (environment 5–40°C)
- Incubation position: Built-in incubation carousel
- Incubation temperature: Auto-controlled, not user-defined
- Mixing system: Tilting rotary mixing
